SATEL-TR4+ R4+ Integration guide
| Frequency | 403…473 MHz |
| Tuning range | 70 MHz |
| Channel width | 12.5 kHz / 20 kHz/ 25 kHz (software selectable) |
| Frequency control | Synthesized 6.25 kHz tuning resolution (10 kHz @ 20 kHz spacing) |
| Modulation | 4FSK, 8FSK, 16FSK, GMSK *) |
| Carrier power | 0.01, 0.02, 0.05, 0.1, 0.2, 0.5, 1 W programmable |
| Size / Weight | 57 x 36 x 6.9 mm / 20 g |

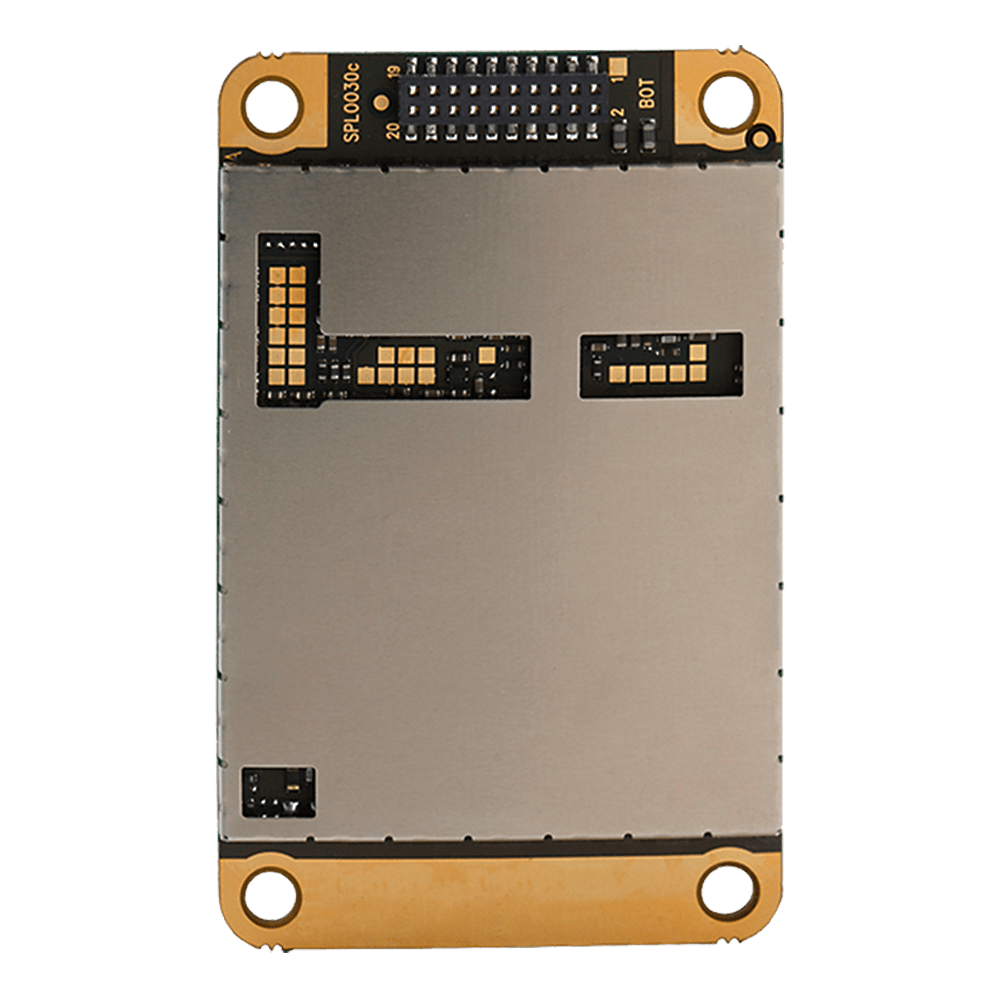

SATEL-TR4+ is a UHF data transceiver module in a lightweight single board structure. It is designed to be integrated into a host device, e.g. to transfer GNSS correction data in a land surveying rover or RTK base station.
70 MHz tuning range (403…473 MHz) and selectable channel width (12.5, 20 and 25 kHz)
Extended operating voltage range
Moderate power consumption
AES128 support as default, AES256 as an order option
Polling Protocol as an order option
Easy installation and configuration
SATEL-TR4+ is supplied without a housing in PCB format with RF-shielding, facilitating installation into the customer’s own housing or into a host device. The radio module configuration can be done with the SATEL SL-commands or SATEL Configuration Manager software.
Compatible and customizable
SATEL-TR4+ is compatible with widely used SATEL radios, such as SATELLINE-M3-TR4, -EASy, -Easy Pro and SATEL-EASy+, and also with other manufacturers’ radio protocols.
SATEL GO radio modules match all the needs of OEM customers. Please contact us or our nearest distributor for various possibilities to create a customized solution for you.
Available models and product codes:
SATEL-TR4+ with AES128 encryption support (YM7470)
SATEL-TR4+ without AES128 encryption support (YM7475)
SATEL-TR4+ with AES128 encryption support, DTE connector at TOP (YM7480)
SATEL-TR4+ without AES128 encryption support, DTE connector at TOP (YM7485)
